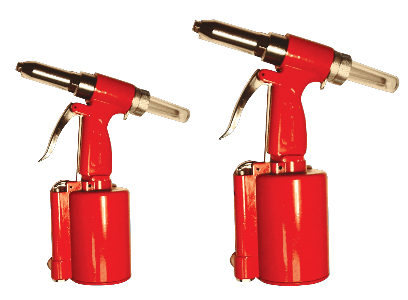

BLIND RIVETERS
Includes 4 nose pieces
3/32″, 1/8″, 5/32″ & 3/16″
Includes 4 nose pieces
5/32″, 3/16″, 7/32″
& 1/4″
Ideal for aluminum, masonite,
formica, siding, and general
duct work using blind rivets.
BR-316
BR-14
| MODEL | STEEL RIVET CPACITY (in.) | PULLING FORCE (lbs.) | STROKE (in.) | HEIGHT (in.) | DIAMETER (in.) | WEIGHT (lbs.) | AIR INLET NPT (in.) |
|---|---|---|---|---|---|---|---|
| BR-316 | 3/16 | 2000 | 17/32 | 10 3/4 | 3 1/8 | 3.0 | 1/4 |
| BR-14 | 1/4 | 3200 | 29/32 | 12 3/8 | 3 1/2 | 4.50 | 1/4 |
